MYTHOLOGY TRANSFORM X-frame

Size

振動変換オーディオラック HiFiStay X-frame

Mythology transform Audio rack

振動変換オーディオラック HiFiStay X-frame
Mythology transform Audio rack 3Levels 2Levels 1Level
CD Transport & DAC CD Transport & DAC Amplifier
Turntable Turntable Any audio devices
Application Amplifier Amplifier
Network device Network device
Any audio devices Any audio devices

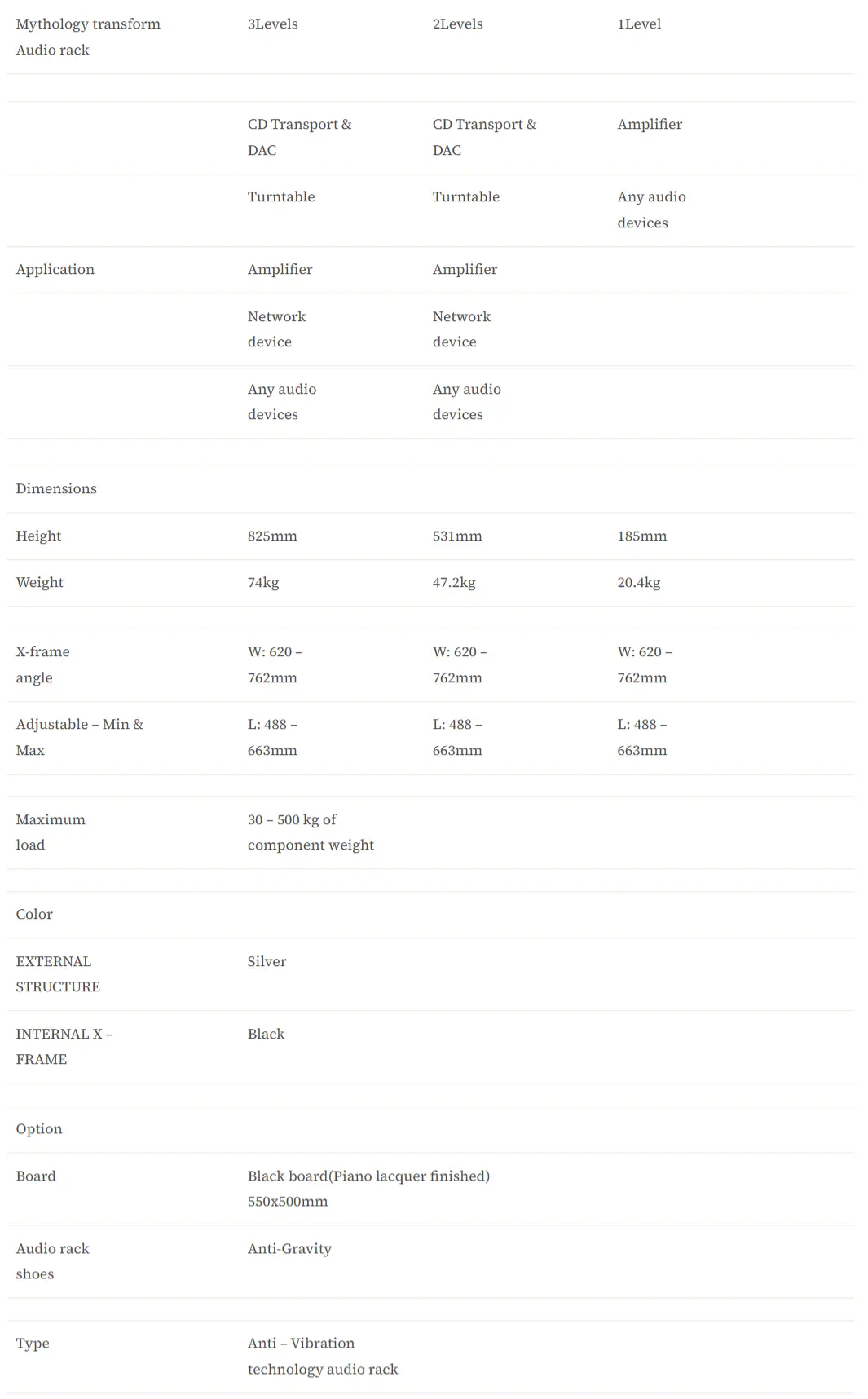

Dimensions
Height 825mm 531mm 185mm
Weight 74kg 47.2kg 20.4kg
X-frame angle W: 620 – 762mm W: 620 – 762mm W: 620 – 762mm
Adjustable – Min & Max L: 488 – 663mm L: 488 – 663mm L: 488 – 663mm
Maximum load 30 – 500 kg of component weight
Color
EXTERNAL STRUCTURE Silver
INTERNAL X – FRAME Black
Option
Board Black board(Piano lacquer finished) 550x500mm
Audio rack shoes Anti-Gravity
Type Anti – Vibration technology audio rack

KEY FEATURE



The audio rack we think is not just a piece of household furniture.
At the moment when the device is free from vibration, the device will maximize its performance.
And music comes to us with an impression that we have never seen before.
We have put a lot of know-how gained in producing vibration control devices and accessories into this audio rack.
It’s name is Mythology Transform.

Innovative vibration control through VHC System.
VHC(Vertical Horizon Vibration Control Technology) represents the technology that handles vibration in every direction.
This vibration control system with VHC technology does not break the balance in all bandwidth and comes up with information quantity of music source as much as possible.
The most important factor in operating audio equipment is electric power supply and vibration control.
There’re three representative types in the audio equipment vibration : floor vibration, vibration through air and micro-vibration from the inside of device.
HIFISTAY Mythology Transform integrates special technology with Audio Rack to control such three types of vibration.

X-Frame & Perfect Pointer
It can be applied to any audio device.
With freely movable cantilever system, you can apply it to any device regardless of size.
The Perfect Pointer’s ceramic ball bearing system makes you feel like cloud(floating in the air) and effectively prevents from external vibration.
Adjustable Aspect Ratio Frame
X-Frame structure connects to spike and shoes(VHC SYSTEM) at the bottom through each pole.
You can adjust horizontal and vertical angles of X-Frame depending on installation environment and device.
Size: 550×500 The high quality board finished with Piano Lacquer will be available as an option.

Anti-gravity
This shoes for audio rack combines the strength of our existing models, Ballerino shoe series and Dharma resonator.
Anti-gravity is upgraded version of existing Ballerino series and made in double swing structure.
It controls and prevents the vibration through spherical pendulum movement of action and reaction (Newton’s 2nd law of motion).
It’s designed to dissipate residual vibration through 5,600 stainless ball bearings inside.
